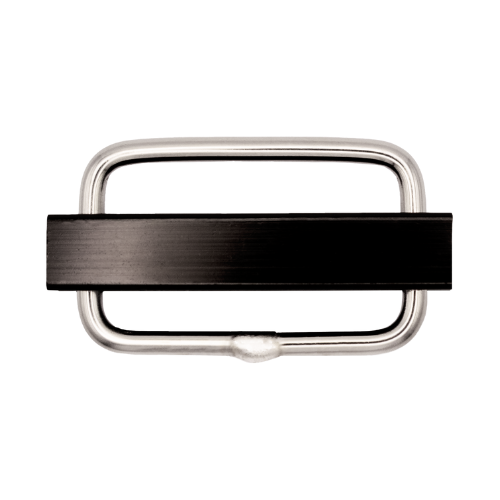

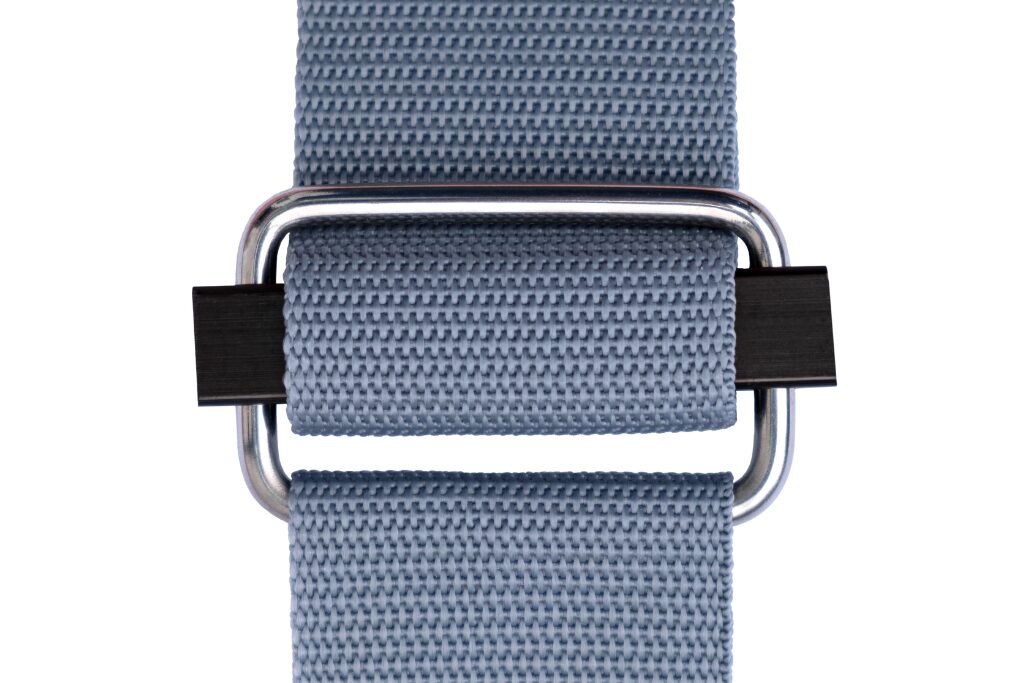

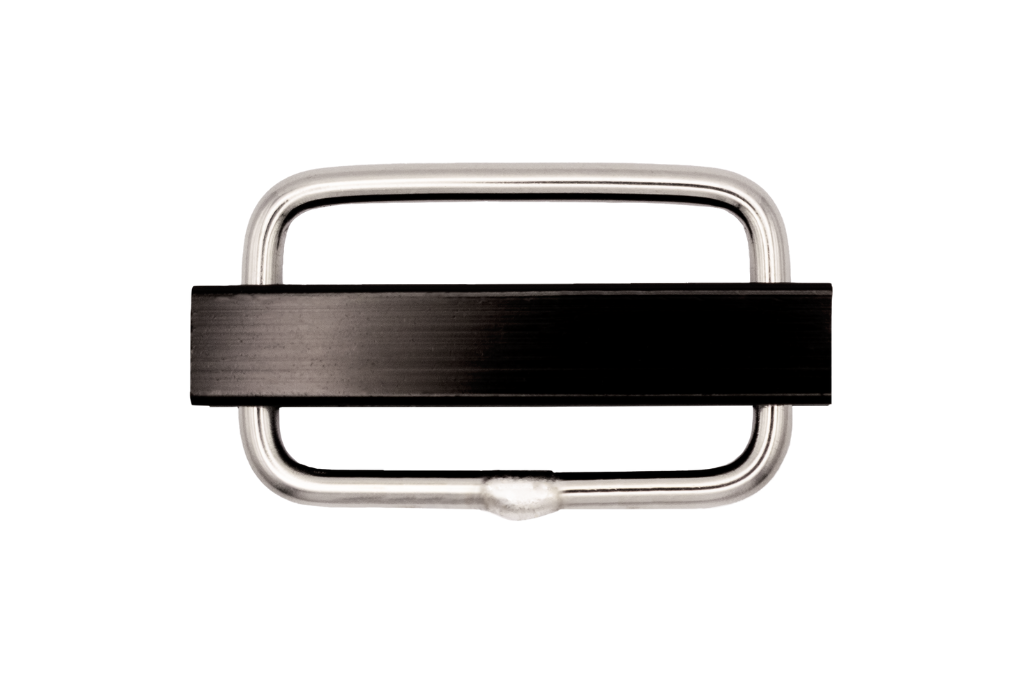

0104A – Sliding Bar Buckle 50mm with Knurled Aluminium Bar
High-quality composite buckle suitable for a wide range of applications, including webbing straps and canopy hoods.
The high-performance H-section aluminium bar prevents slipping.
Bar is anodised black.
It is the obligation of the purchaser or end user to determine whether or not the item is suitable for its intended application. In no event shall our liability extend beyond the replacement cost of any item.
Stainless Steel Buckle with Knurled Aluminium Bar
Dimensions
METRIC (MM)
IMPERIAL
Part Number
0104A
Material
316 stainless steel frame with a black anodised aluminium bar
Webbing width
50mm
Breaking load
750kg
Internal width
54mm
Internal height
30mm
Thickness
5mm
External height
40mm
External width
64mm
Weight
43g
Key Features
Tig Welded
For superior strength
H-Section Sliding Bar
Improved anti-slip performance
Black Anodised Bar
Corrosion-resistant grip
