BACK TO VIEW ALL

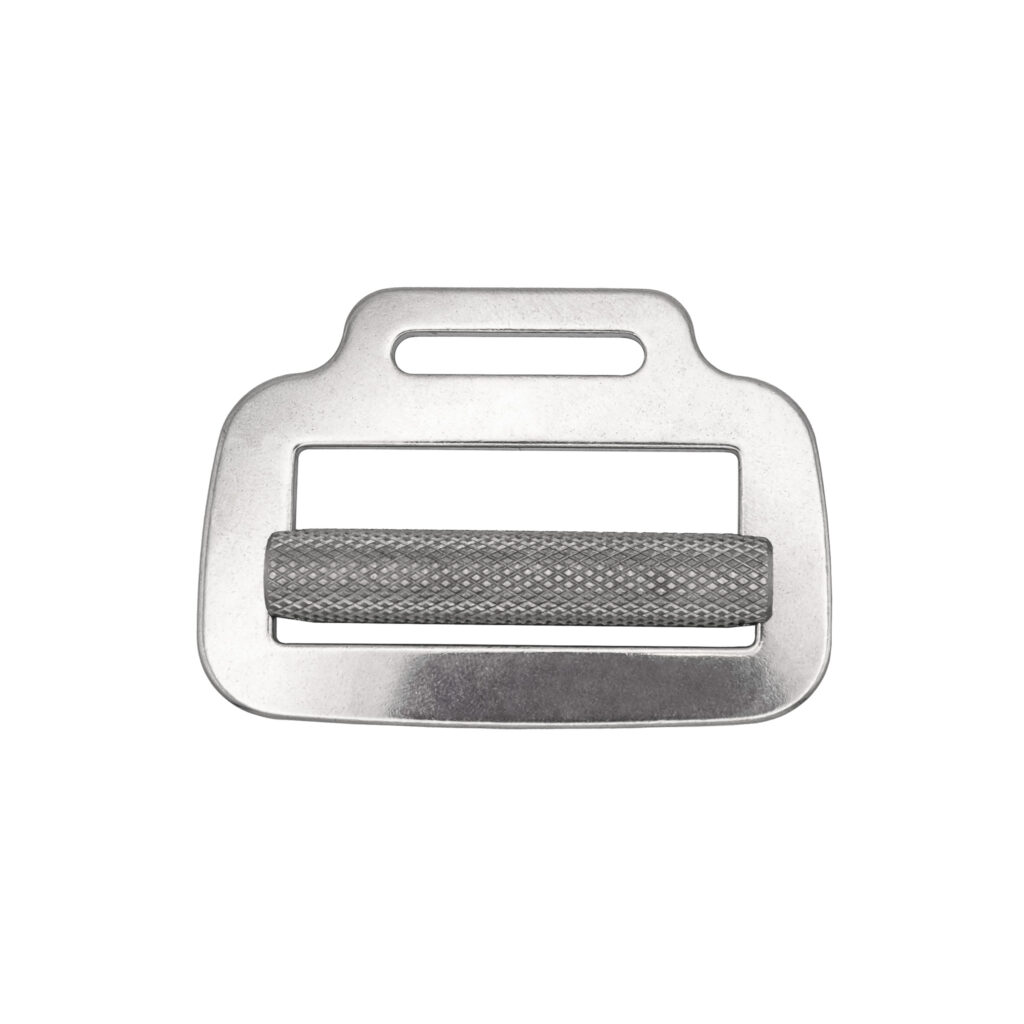

0114 – Sliding Bar Buckle 50mm, Stainless Steel

Designed for use with 50 mm webbing and is manufactured from 316 stainless steel. It features a secondary retaining slot to assist with webbing positioning and retention during use. The buckle has a material thickness of 3 mm (0.12 in) and is suitable for environments where resistance to corrosion is required.

Get in Touch

Stainless Steel Sliding Bar Buckle with Retaining Tab

Dimensions

METRIC (MM)

IMPERIAL

Part Number

0114

Description

Stainless Steel Sliding Bar Buckle

Webbing Width

50mm

Breaking Load

1300kg

Material

316 stainless steel

A - Slot Width

56mm

B - Slot Width

52mm

D - Slot Width

30mm

E - Overall Length

53mm

Weight

89g

IMPERIAL

METRIC (MM)

Part Number

0114

Description

Stainless Steel Sliding Bar Buckle

Webbing Width

Breaking Load

2866lbs

Material

Frame and bar Type 316 stainless steel

A - Slot Width

2.20"

B - Slot Width

2.05"

D - Slot Width

1.18"

E - Overall Length

2.09"

Weight

3.14oz

Key Features

316 Stainless Steel

For a long life

High Breaking Load

1300 Kgs / 2866 Lbs

Knurled Bar

For improved grip

View Our Hardware Catalogue

Click Here
