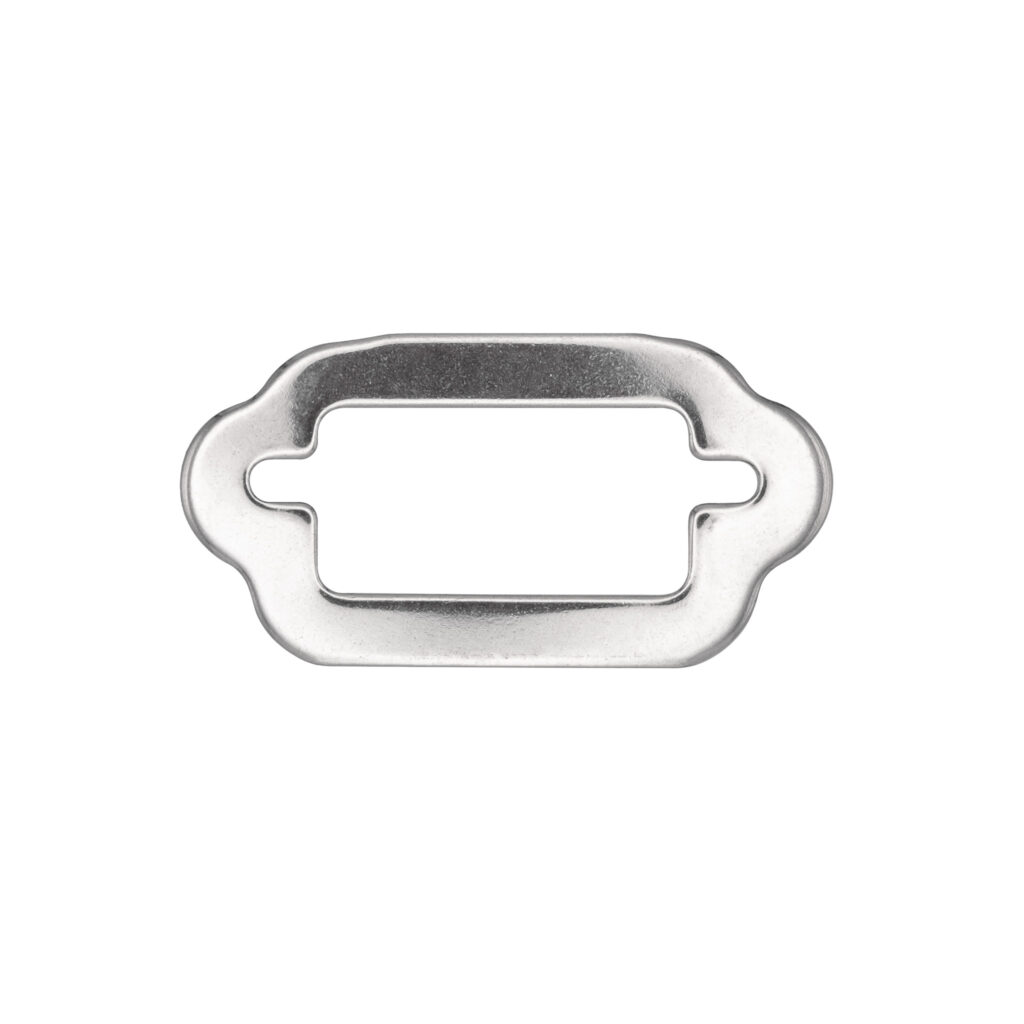

0392 – Easi Link Buckle 45mm

The Makefast Easi Link Systems are designed to offer easier assembly of link and slide or link and 3 bar adjuster.

They allow the use of thicker webbings and are particularly suited to quick release applications.

Part No. 0392 combined with Part No. 0542 3 bar adjuster are accredited to Lifejacket Standard EN ISO 12402-7:2006/FprA1:2010

It is the obligation of the purchaser or end user to determine
whether or not the item is suitable for its intended application.
In no event shall our liability extend beyond the replacement cost of any item.

Get in Touch

Stainless Steel

METRIC (MM)

IMPERIAL

Part Number

0392

Description

Easi Link Buckle for 45 mm. webbing

A - Inside Width

45mm

B - Inside Height

23mm

C - Material Thickness

3mm

D - Gate Width

5.2mm

E - Overall Width

81.2mm

Material

316 stainless steel

Breaking Load

800kg

Weight

39g

IMPERIAL

METRIC (MM)

Part Number

0392

Description

Easi Link Buckle for 1 3/4" webbing

A - Inside Width

1.75"

B - Inside Height

0.91"

C - Material Thickness

0.12"

D - Gate Width

0.20"

E - Overall Width

3.20"

Material

316 stainless steel

Breaking Load

1850lbs

Weight

1.38oz

316 Stainless Steel

For a long life

Quick Connect and Release

For convenience
